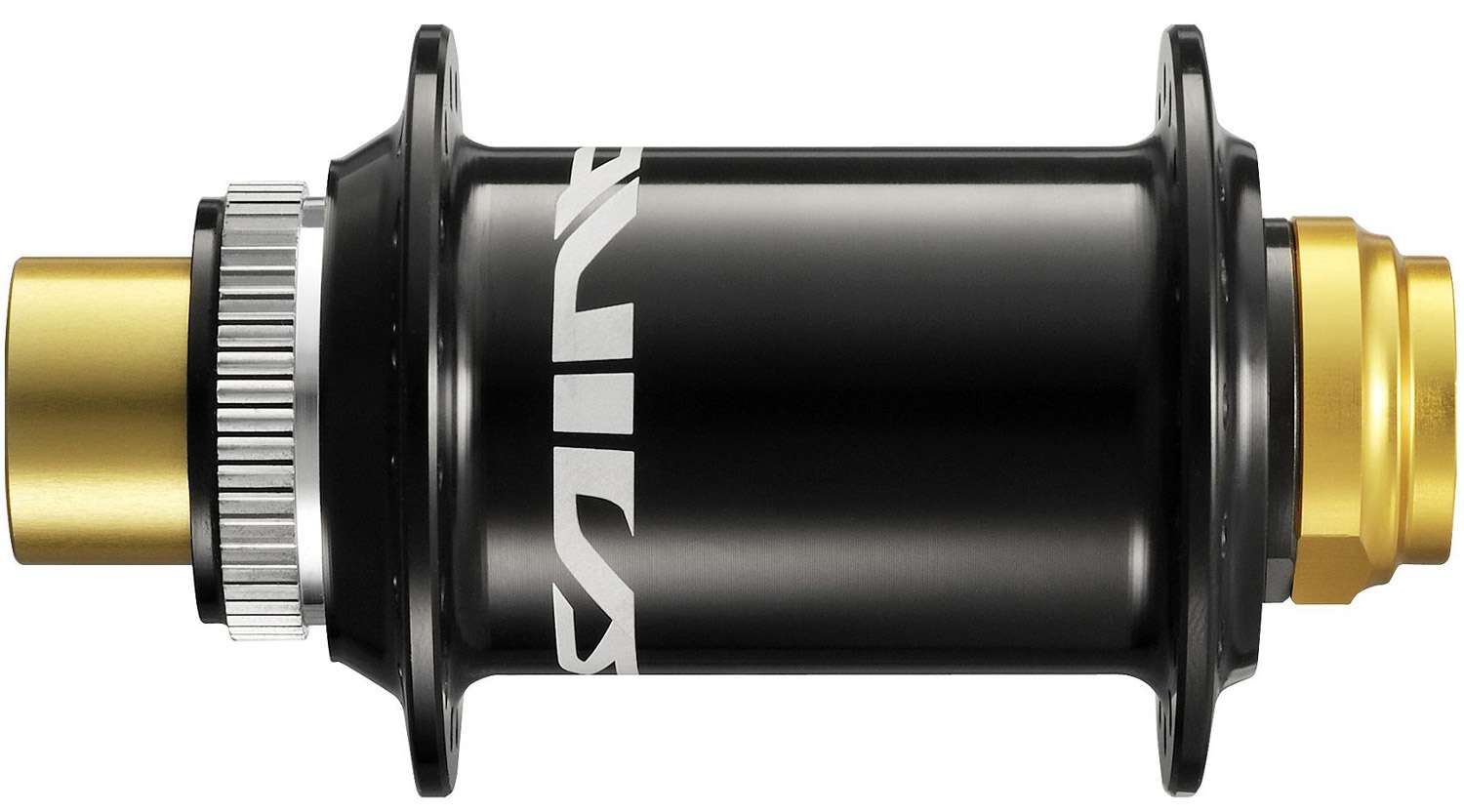

Shimano saint hb-m820 center lock disc front hub for 20 mm thru-axles

Product Description The Saint front hub HB-M820 by Shimano ensures a smooth ride With the Shimano Saint HB-M820 Center Lock Disc front hub, downhill riding is a breeze. It features a cup & cone bearing with stainless steel balls, high-quality seals and an internal grease sleeve. HB-M820 is only compatible with 20 x 110 mm over locknut dimensions. Specifications:Series:Saint M820Application:DownhillBrake Type:Center Lock DiscTechnical Information:Body Material:aluminiumBearings:cup & coneSeals:labyrinth + contactFeatures:110 mm axle length, 20 mm axle diameter59.6 mm flange diameter5.6 mm offsetstainless steel ball bearings, CBN precision machinedaluminium axlesanodised hub shellhigh quality sealinternal grease sleeveTechnology:E-Thru E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear. Cup and Cone Bearings Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace. Models:32 hole: Over Locknut Dimension:20 x 110 mm thru-axleSpoke Hole Count:32 holeFlange Distance (L/R):61.6 mm (25.2 mm/36.4 mm)Partial Bolt Circle Diameter (L/R):52 mm/52 mmManufacturer Number:E-HBM820E 36 hole: Over Locknut Dimension:20 x 110 mm thru-axleSpoke Hole Count:36 holeFlange Distance (L/R):61.6 mm (25.2 mm/36.4 mm)Partial Bolt Circle Diameter (L/R):52 mm/52 mmManufacturer Number:E-HBM820DContents:1 x Shimano Saint HB-M820 front hub1 x lockring Weight: black | 32: 216 g Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
