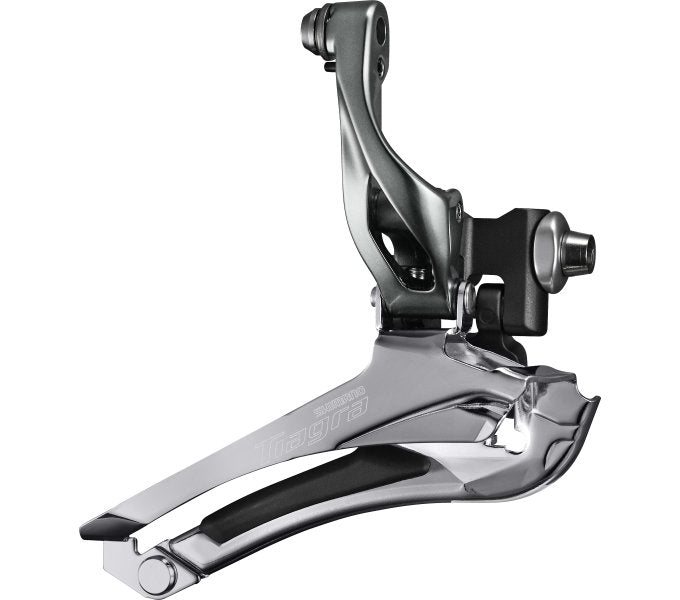

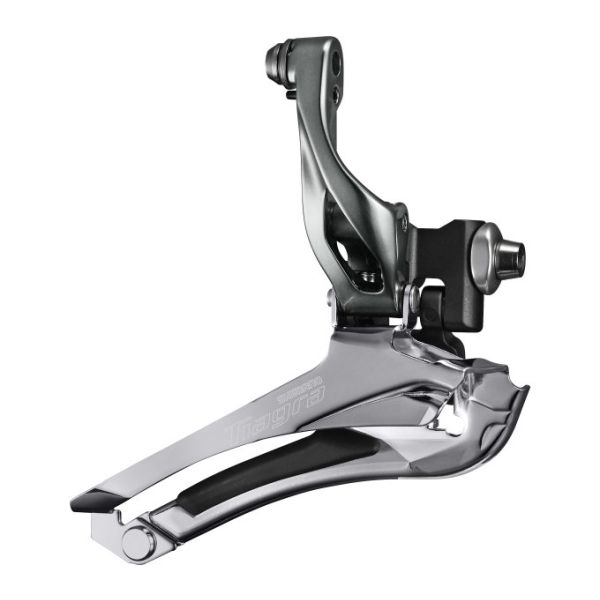

Shimano voorderailleur 2 x 10-speed tiagra fd-4700 down pull - aanlas 61-66° - 46-53t - zwart zilver

SHIMANO TIAGRA - Voorderailleur - Hardgesoldeerde montage - Race - 2 x 10-versnellingen De langere hendelarm op de SHIMANO TIAGRA Voorderailleur creëert Light Action op de schakelversteller en precieze, betrouwbare schakeling over een 16T-capaciteit. Productspecificaties

Merk: Shimano

Shimano groep: Tiagra

Shimano modelcode: FD-4700

Kettinglijn (mm): 43.5

Hoek achtervork: 61 - 66

Compatibele ketting: HG-X-ketting / CN-HG500

Aantal versnellingen: 2 x 10 speed

Montagemogelijkheid: Aanlas

Kabelrouting: Down pull

Grootste kettingblad: 46-53 tands

Kleur: Grijs/zilver Shimano voorderailleur Tiagra 4700 10-Sp aanlas Dubbel Product Description The Tiagra FD-4700 Front Derailleur by Shimano - Stable, smooth shifting The Shimano Tiagra FD-4700 front derailleur ensures smooth and stable shifting on road bikes with two chainrings and 10-speed drivetrains. It impresses with its smooth operation and its compatibility with modern HG-X mountain bike chains, which are guided securely thanks to its fine tuning. The parallelogram of the front derailleur is made of lightweight aluminium, the cage plates are made of steel. The FD-4700 is available for clamp and braze-on mounting. Specifications:Series:Tiagra 4700Application:Road, CityGearing:2x (combined w/ 10-speed)Chainstay Angle:61-66°Chainline:43.5 mmChainring Size (max.):46-52 teethCapacity:16-toothCable Routing:down pullMovement:down-swingMount:braze-on, clampClamp Diameter:31.8 mm w/adapter 28.6 mm, 34.9 mmCompatibility:HG-X chains, CN-HG500 chainTechnical Information:Outer Body Material:AluminiumInner Body Material:AluminiumCage Material:steelCompatibility:Shift/Brake Lever:ST-4700, ST-RS405, SL-4700, ST-4720, ST-4725, ST-RX400Crank:FC-4700, FC-R460, FC-RS400, FC-CX70, FC-CX50Chain:CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54, CN-7901, CN-6701, CN-5701, CN-4601Features:smooth and stable front gear shiftingsmoother, more ergonomic operationless risk of the chain droppingfiner L-trim and low-positionsupport screw increases stability (braze-on version)painted parallelogram, chrome-plated cage platesModels:braze-on: Mount:braze-onType:FD-4700-FManufacturer Number:I-FD4700F 31.8 mm: Mount:Clamp (diameter 31.8 mm; 28.6 mm with adapter)Type:FD-4700-BManufacturer Number:I-FD4700BSM 34.9 mm: Mount:Clamp (diameter 34.9 mm)Type:FD-4700-BManufacturer Number:I-FD4700BLContents:1 x Shimano Tiagra FD-4700 front derailleur1 x clamp adapter (31.8 mm version only)Order Together:TL-FD68 Alignment Tool Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
