Shimano nexus 8 binnenwerk sg-c6001 8r30 8r31 c6000 8r

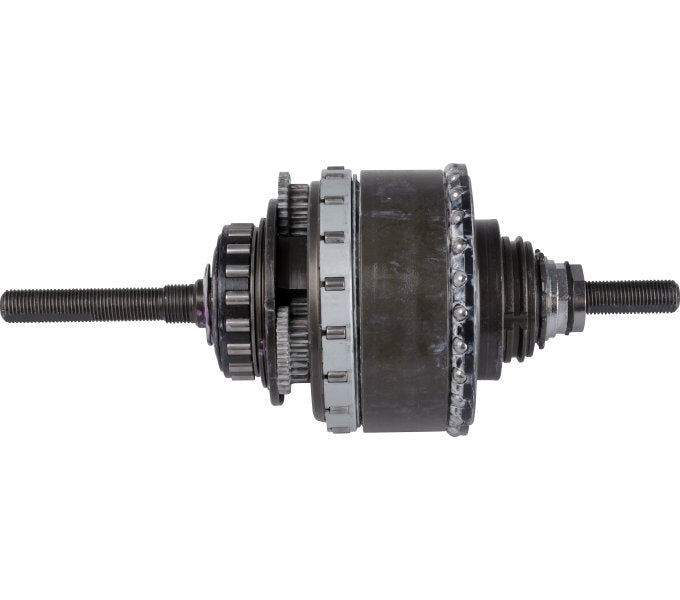

Compleet binnenwerk voor Shimano Nexus 8 versnellingsnaaf SG-C6001-8R / SG-C6001-8V / SG-C6010-8R / SG-C6000-8R / SG-C6000-8V / SG-8R36 / SG-8R30 / SG-8R35 / SG-8R31

• Aslengte: 184 mm

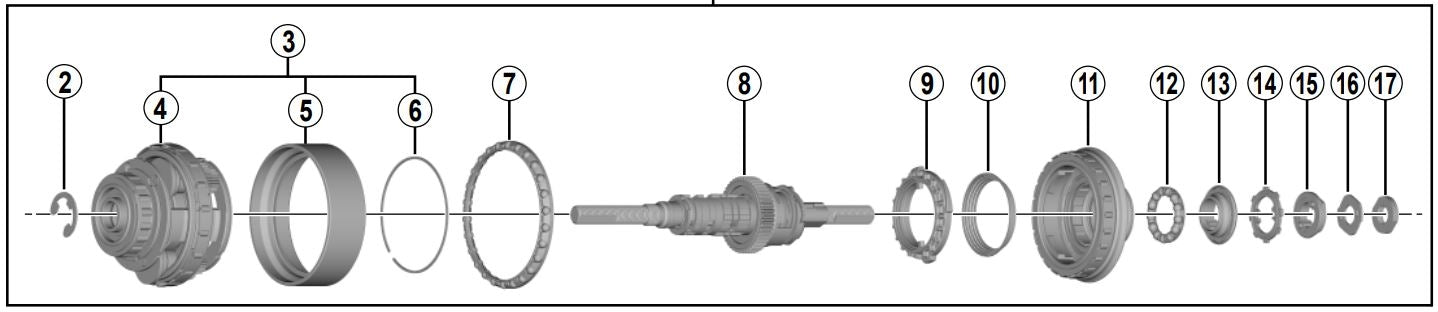

• Bestaande uit de volgende onderdelen:
• 2 Y34R79000 Stop Ring
• 3 Y3EH98030 Ring Gear Unit
• 4 Y3EH98040 Carrier Unit
• 5 Y36V22000 Ring Gear 1
• 6 Y34R80000 Ring Gear 1 Stop Ring
• 7 Y38X98050 Ball Retainer O (3/16" x 26)
• Y3EH98050 Hub Axle Unit (Axle Length 184 mm)
• Y3EH98060 Hub Axle Unit (Axle Length 203 mm)
• 9 Y34R98050 Clutch Unit
• 10 Y34R21000 Return Spring A
• 11 Y37J98020 Driver Unit
• 12 Y34R98070 Ball Retainer P (3/16" x 13)
• 13 Y37J98080 Right Hand Cone w/Seal
• 14 Y34R12000 Driver Plate
• 15 Y34R98090 Lock Washer
• 16 Y34R09000 Stop Washer
• 17 Y33Z07020 Right Hand Lock Nut (3.4 mm)

Shimano nexus 8 binnenwerk sg-c6001 8r30 8r31 c6000 8rShimano binnenwerk Nexus 8v SG-C6001-8 Rollerbrake/V-brake 184mm
